adding a 6th room


  • Please log in to reply
4 replies to this topic

#1 OFFLINE   getsideways

getsideways

    New Member

  • Registered
  • 5 posts
Joined: Dec 17, 2006

Posted 05 September 2011 - 10:42 AM

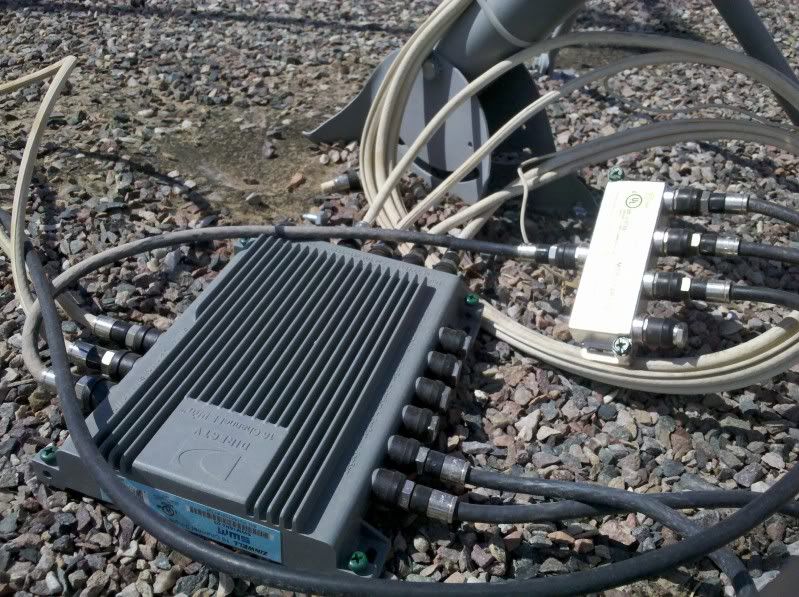

I currently have 5 dvr's. (hr20,hr23, old style tivo and 2 r16) I ran a line into another room so i can move a r16 receiver into that room from another room when i want to. problem is now i dont know where to hook it up or if i need another splitter. there is a swm box in the house for the receivers that are swm capable. here is a picture of my rooftop setup. the open port on the splitter is red so i dont know if i can use it. the 2 coming out of the legacy ports go to my old tivo i assume. thanks

Posted Image

...Ads Help To Support This SIte...

#2 OFFLINE   veryoldschool

veryoldschool

    Lifetime Achiever

  • Moderators
  • 41,981 posts
Joined: Dec 09, 2006

Posted 05 September 2011 - 10:47 AM

You shouldn't have a problem connecting to the splitter, "BUT" the SWiM-16 has two outputs and each can have NO MORE THAN eight tuners [DVR =2] connected, which might require you to use the other output to connect the additional receiver.
A.K.A VOS

#3 OFFLINE   getsideways

getsideways

    New Member

  • Topic Starter
  • Registered
  • 5 posts
Joined: Dec 17, 2006

Posted 05 September 2011 - 11:02 AM

so i should try plugging my new line into the one open red port on the splitter? and leave the cable open in the room i pull the receiver out of? i keep reading about terminating ports? im not really adding more tuners, im just moving one dvr from one room to another. i forgot to mention that right now the 2 r16 are in rooms next to each other so the last installer just split the line in the room and ran a line thru interior wall for the other room.

#4 OFFLINE   veryoldschool

veryoldschool

    Lifetime Achiever

  • Moderators
  • 41,981 posts
Joined: Dec 09, 2006

Posted 05 September 2011 - 11:48 AM

It always helps to know the whole story, but there isn't any problem using "the red" port. Terminating unused ports "should be" done.
A.K.A VOS

#5 OFFLINE   cabletech

cabletech

    Legend

  • Registered
  • 260 posts
Joined: Jan 20, 2011

Posted 06 September 2011 - 04:44 PM

I guess I have to ask the dum question about the splitters being on the roof. Why? I also do not see a ground wire and it looks like this is a commerical flat type roof, correct?
